North Hills數據總線MIL-STD-1553組件

發布時間：2020-11-18 16:35:33 瀏覽：2337

North Hills擁有廣泛的軍用和空間級組件生產線，為微處理器、PCI總線和簡單系統提供MIL-STd-1553接口解決方案。North Hills數據總線MIL-STD-1553組件自1980年代初開始使用。從2000年到2007年，North Hills在EMACE ASIC上花費了2億多小時。

深圳市立維創展科技是North Hills的經銷商，提供North Hills產品領域包含寬帶變壓器，寬帶巴倫變壓器，測試級回波損耗橋等，產品原裝進口，質量保證，價格優勢，歡迎咨詢。

*部分產品型號需求請聯系我們的工程師。

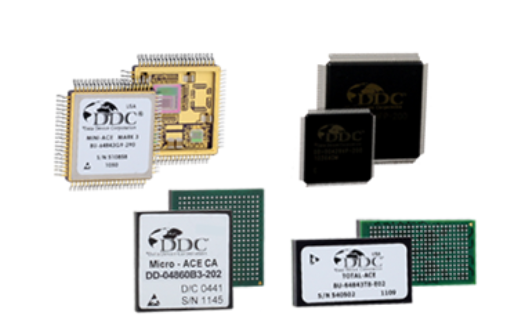

North Hills數據總線MIL-STD-1553組件

Part Number	Product Name	Description	Package	Function
BU-61703, BU-61705	Simple System RT Enhanced Mini-ACE	Ceramic Hybrid Terminal	Flat Pack, Gull Wing	Simple System To 1553
BU-61740, BU-61840, BU-61860	Micro-ACE	Plastic BGA Terminal	BGA	Processor to 1553
BU-61743, BU-61745, BU-61843, BU-61845, BU-61864, BU-61865	Enhanced Mini-ACE	Ceramic Hybrid Terminal	Flat Pack, Gull Wing	PCI or Processor to 1553
BU-63147, BU-63157	Dual 5V Transceiver	1553 Transceivers	DIP, Flat Pack	Dual 5V Transceiver
BU-63152	Dual 5V Transceiver	1553 Transceivers	Gull Wing	Dual 5V Transceiver
BU-63155	Single 5V Transceiver	1553 Transceivers	LPCC	Single 5V Transceiver
BU-63705	SP'ACE RT II	Radiation Tolerant	Flat Pack, QIP	Rad Hard Simple System to 1553
BU-63925, BU-63825	SP'ACE II	Radiation Tolerant		Rad Hard Processor To 1553
BU-64703	Simple System RT Mark3	Ceramic Hybrid Terminal	Flat Pack, Gull Wing	Simple System To 1553
BU-64740, BU-64743, BU-64840, BU-64843, BU-64860, BU-64863	Micro-ACE-TE	Plastic BGA Terminal	BGA	PCI or Processor to 1553
BU-64743, BU-64745, BU-64843, BU-64845, BU-64863	Mark3	Ceramic Hybrid Terminal	Flat Pack, Gull Wing	PCI or Processor to 1553
BU-64843, BU-64863	Total-ACE	Fully Integrated Plastic BGA Terminal with Transformers Inside	BGA	PCI or Processor to 1553
BU-6517x, BU-61588, BU-6168x	Mini-ACE	Ceramic Hybrid Terminal	Flat Pack, Gull Wing, PGA	Processor to 1553
BU-6517x, BU-6158x	ACE	Ceramic Hybrid Terminal	DIP, Flat Pack, Gull Wing	Processor to 1553
BU-67301B, BU-67301E	Total-AceXtreme?	Fully Integrated Plastic BGA Terminal with Transformers Inside	BGA	PCI and Processor to 1553 in one device
BU-67301E0T0R-JL0	Total-AceXtreme? Hardware/Software Development Kit	Total-AceXtreme? Hardware/Software Development Kit	PCI	PCI and Processor to 1553 in one device
BU-67302	PCI-Express AceXtreme?	PCI-Express, Plastic BGA Terminal	BGA	PCIe to 1553
BU-67401	Dual 3.3V Transceiver	1553 Transceivers	LPCC	Dual 3.3V Transceiver
BU-67402	SPACE-PHY	Radiation Tolerant	Flat Pack	Dual 5V Transceiver / Transformer
BU-67502	Total-Space RT	Remote Terminal, Radiation Tolerant, Fully Integrated	Gull Wing, Flat Pack	Rad Hard Simple System to 1553
BU-67521	Total-Space ACE	BC/RT/MT Terminal, Radiation Tolerant, Fully Integrated	Flat Pack, Gull Wing	Rad Hard Processor To 1553
BU-67743EC	Nano Ace? Development Kit	Nano Ace? Development Kit	Small Form Factor Board	RT/MT + Transceiver + Memory
BU-67833LC,BU-67743LC, BU-67753LC	Nano-ACE? MIL-STD-1553 Remote Terminal/Monitor	1553 Remote Terminal / Monitor	LPCC	Processor to 1553
BU-69210, BU-69211	SSRT-Core	1553 IP	IP	Your Design to 1553
BU-69231, BU-69232, BU-69233	ACE Flex-Core	1553 IP	IP	Your Design to 1553
