?KR Electronics低通濾波器SMD

發布時間：2023-12-28 16:56:20 瀏覽：1079

低通濾波器是種數字信號處理濾波器，將控制信號通過一些濾波器，只接受某些諧振頻率之下的信號通過，通過清除高頻信號，過濾控制信號中的高頻噪音或干擾信號，從而使得輸出信號更加平整、更加穩定。這種諧振頻率一般稱為濾波器的諧振頻率或截止角頻率，一般以赫茲或弧度為單位/秒來表示。

KR Electronics低通濾波器SMD能夠利用各種電源電路去實現，包含差分放大器、運算放大器、濾波電容、功率電感等。

KR Electronics低通濾波器SMD根據客戶需求個性定制低通濾波器貼片的參數。還能通過封裝進行調整。表面貼裝型一般用于封裝形式，連接器也同樣如此。

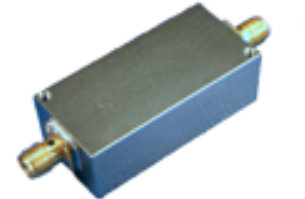

KR Electronics.png

Part Number	Cutoff Frequency	Attenuation at Cutoff	Stopband Frequency	Stopband Attenuation	Case Style	Notes/Special Features
3256	1 MHz	1	1.875 MHz	40	SMD	4 Filters in one Module
2434-5	5 MHz	0.5	10 MHz	55	SMD
2124SMD	5.5 MHz	0.2	8 MHz	40	SMD	75 Ohm Group Delay Equalized
2437-6.1	6.1 MHz	3	7.625 MHz	45	SMD
2434-6.7	6.7 MHz	0.5	13.4 MHz	55	SMD
2695	9.4 MHz	1	20 MHz	40	SMD
2969	10 MHz	1	13.125 MHz	84	SMD
3275	10 MHz	0.5	20 MHz	55	SMD
2434-10	10 MHz	0.5	20 MHz	55	SMD
2884+	11 MHz	3	12 MHz	50	SMD
3214-12+	12 MHz	1	33 MHz	40	SMD
2378	15 MHz	0.1	22.275 MHz	40	SMD	75 Ohm Group Delay Equalized
2999	20 MHz	2	30 MHz	60	SMD
2390	20 MHz	0.1	29.7 MHz	40	SMD	75 Ohm Group Delay Equalized
2434-20	20 MHz	0.5	40 MHz	55	SMD
2434-30	30 MHz	0.5	60 MHz	55	SMD
3018-1+	30 MHz	1	70 MHz	50	SMD
3018-2+	30 MHz	1	37.5 MHz	50	SMD	Group Delay Equalized
3195	30 MHz	1	70 MHz	83	SMD
3214-30+	30 MHz	1	78 MHz	40	SMD
2338	30 MHz	0.1	44.55 MHz	40	SMD	75 Ohm Group Delay Equalized
2416-32	32 MHz	3	47.36 MHz	50	SMD
2824	32 MHz	3	50 MHz	75	SMD
3254-32-LP	32 MHz	1.5	50 MHz	60	SMD
3214-33+	33 MHz	1	59 MHz	40	SMD
2789-SMD	40 MHz	1.5	52.5 MHz	84	SMD
2297-9	40 MHz	0.5	56 MHz	45
2740	44 MHz	0.5	60 MHz	60	SMD
2912	45 MHz	0.2	50 MHz	11	SMD	Group Delay Equalized
2455-SMD	45 MHz	0.5	60 MHz	60	SMD	Group Delay Equalized Sin(x)/x
2894	50 MHz	3	68.5 MHz	45	SMD
2515-S	50 MHz	0.25	73.6 MHz	60	SMD	Group Delay Equalized
2403-S	60 MHz	0.2	74.25 MHz	40	SMD	75 Ohm Group Delay Equalized
2289-75-S	75 MHz	4	87 MHz	45	SMD
3025	90 MHz	1	160 MHz	60	SMD
3261	100 MHz	3	148 MHz	50	SMD
2416-100	100 MHz	3	148 MHz	50	SMD
2923-SMD+	110 MHz	2.5	117.5 MHz	40	SMD
2416	125 MHz	3	185 MHz	50	SMD
2978	150 MHz	1	250 MHz	70	SMD
2750	165 MHz	0.75	225 MHz	50	SMD	Group Delay Equalized
3013-1	185 MHz	1	210 MHz	30	SMD
3070	200 MHz	3	250 MHz	40	SMD	Group Delay Equalized
3253-201-LP	201 MHz	1.5	402 MHz	50	SMD
3395+	225 MHz	1	278 MHz	40	SMD
3068	250 MHz	1	300 MHz	20	SMD
3086	250 MHz	1	330 MHz	60	SMD	Group Delay Equalized
2961	300 MHz	1	500 MHz	40	SMD	Group Delay Equalized
2426	320 MHz	0.5	1000 MHz	35	SMD
2433-400	400 MHz	3	522 MHz	54	SMD
2433-416	416 MHz	3	543 MHz	54	SMD
2738	420 MHz	1.5	500 MHz	35	SMD
3007+	430 MHz	0.5	549 MHz	20	SMD	Group Delay Equalized Sin(x)/x
2927	440 MHz	3	520 MHz	40	SMD
3488+	475 MHz	4	525 MHz	60	SMD
2968+	475 MHz	0.5	800 MHz	55	SMD	Group Delay Equalized Sin(x)/x
3255-805-LP	805 MHz	1.5	1600 MHz	50	SMD
3307+	1200 MHz	0.5	2000 MHz	30	SMD	Group Delay Equalized Sin(x)/x
3337+	1208 MHz	2	1292 MHz	18	SMD
3008	1250 MHz	1	1600 MHz	40	SMD
3308-1350+	1350 MHz	1	1900 MHz	40	SMD
3257	1500 MHz	1	1900 MHz	42	SMD
3441-1500+	1500 MHz	3	6000 MHz	30	SMD	Linear Phase
3308-1950+	1950 MHz	1	2700 MHz	40	SMD
3281	2750 MHz	1	3900 MHz	40	SMD
3441-3000+	3000 MHz	3	8000 MHz	20	SMD	Linear Phase
