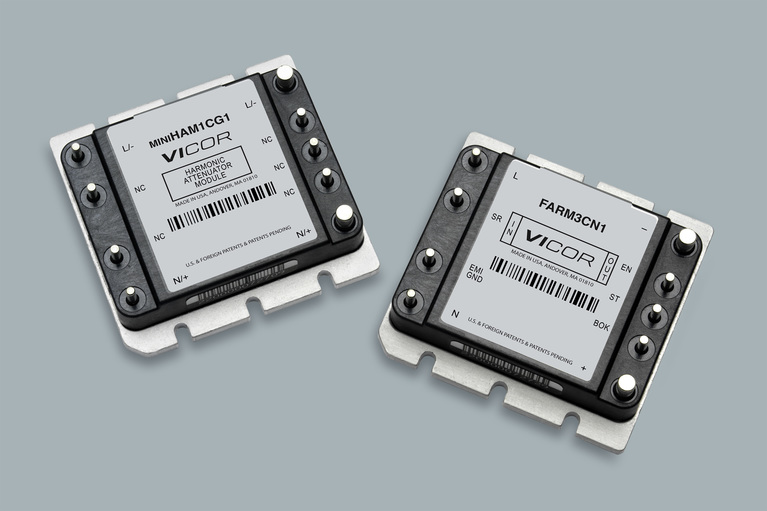

VICOR電源模塊EnMods整合FARM和HAM的單相 AC 前端系統

發布時間：2020-10-20 15:17:27 瀏覽：7000

VICOR電源模塊ENMOD系統是一種交流前端解決方案，它將無源功率因數校正和自動調整結合在一起。VICOR電源模塊ENMOD系統結合濾波和保持電容器，完全滿足EN61000-3-2諧波電流、EN55022B電平輻射、EN61000-4-5浪涌抗干擾、EN61000-4-11線路干擾和EN61000-3浪涌電流的要求。與有源PFC解決方案不同，VICOR電源模塊EnMods不產生EMI，這大大簡化和降低了系統噪聲和濾波要求。

VICOR電源模塊EnMods的特點和優勢

115/230 VAC輸入的自動調整

諧波電流衰減符合EN61000-3-2

EMI濾波器符合EN55022，B級

瞬態干擾抑制符合EN 61000-4-5

深圳市立維創展科技是VICOR電源模塊的代理經銷商，主要提供DC-DC、AC-DC電源模塊，隔離、非隔離電源模塊轉換器等，立維創展致力為客戶提供高品質、高質量、價格公正的微波元器件產品,歡迎咨詢.

VICOR電源模塊EnMods整合FARM和HAM的單相 AC 前端系統

Part Number	產品等級	引腳形式	符合RoHS	基板
EN1C11	–20°C to +100°C	Short	No	Slotted
EN1C12	–20°C to +100°C	Short	No	Threaded
EN1C13	–20°C to +100°C	Short	No	Through hole
EN1C21	–20°C to +100°C	Long	No	Slotted
EN1C22	–20°C to +100°C	Long	No	Threaded
EN1C23	–20°C to +100°C	Long	No	Through hole
EN1CS1	–20°C to +100°C	Short ModuMate	No	Slotted
EN1CN1	–20°C to +100°C	Long ModuMate	No	Slotted
EN1CN2	–20°C to +100°C	Long ModuMate	No	Threaded
EN1CN3	–20°C to +100°C	Long ModuMate	No	Through hole
EN1T11	–40°C to +100°C	Short	No	Slotted
EN1T21	–40°C to +100°C	Long	No	Slotted
EN1T22	–40°C to +100°C	Long	No	Threaded
EN1T23	–40°C to +100°C	Long	No	Through hole
EN1TS1	–40°C to +100°C	Short ModuMate	No	Slotted
EN1TN1	–40°C to +100°C	Long ModuMate	No	Slotted
EN1TN2	–40°C to +100°C	Long ModuMate	No	Threaded
EN1H21	–40°C to +100°C	Long	No	Threaded
EN1HN1	–40°C to +100°C	Long ModuMate	No	Slotted
EN1HN3	–40°C to +100°C	Long ModuMate	No	Through hole
EN1CF2	–20°C to +100°C	Short RoHS	Yes	Threaded
EN1CG1	–20°C to +100°C	Long RoHS	Yes	Slotted
EN1CG2	–20°C to +100°C	Long RoHS	Yes	Threaded
EN1CG3	–20°C to +100°C	Long RoHS	Yes	Through hole
EN1TG1	–40°C to +100°C	Long RoHS	Yes	Slotted
EN1HG1	–40°C to +100°C	Long RoHS	Yes	Slotted
