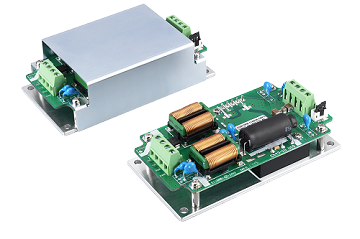

CINCON底盤安裝/ DIN導軌30-600W

發布時間：2021-01-11 17:00:27 瀏覽：1923

CINCON公司提供30W-600 W底盤安裝和DIN導軌DC-DC轉換器，能夠集成散熱器可改善熱性能。CINCON底盤安裝/DIN導軌30-600W的特點包括寬輸入范圍、輸入過電壓保護、穩定輸出和連續短路保護。

深圳市立維創展科技有限公司是CINCON電源模塊的分銷商，提供CINCON電源模塊直流電、交直流電源、LED電源等，原產品進口，質量保證，價格優勢，歡迎咨詢。

CINCON底盤安裝/ DIN導軌30-600W

12:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W12-72SXX-CMFC(D)	30-50W	14 -160V	5V, 12V, 24V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD)

4:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CHB/CHE50-100W-CM/DIN	100W, 50W, 75W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	Screw Terminal	4.61x2.54x1.03
CQB/CQE50-150W-CM/DIN	100W, 150W, 50W, 75W	18~75V, 43~160V, 66~160V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	Screw Terminal	4.41x1.57x1.98
CQB100W-110SXX-CMFC(D)	100W	43-160V	5V, 12V, 15V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD)
CQB150W-110SXX-CMFC(D)	150W	43~160V	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD)
CHB200W-110SXX-CMFC(D)	200W	43-160V	5V, 12V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	6.50x3.00x1.52 (CMFC) 6.50x3.09x1.57 (CMFD)
CHB300W-110SXX-CMFC(D)	300W	43-160V	3.3V, 5V, 12V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	6.50x3.00x1.52 (CMFC) 6.50x3.09x1.57 (CMFD)
CFB600W-110SXX CMFD	600W	43-160V	12V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	9.45x4.33x1.65

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB150-300SXX CMFC(D)	150W	180~425V	5V, 12V, 15V, 24V, 28V, 48V	Screw Terminal Build in filter EN45545-2 Baseplate Cooled	4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD)
CHB300-300SXX CMFC(D)	300W	180~425V	5V, 12V, 24V, 28V, 48V	Screw Terminal Build in filter EN45545-2 Baseplate Cooled	6.50x3.00x1.52 (CMFC) 6.50x3.09x1.57 (CMFD)
